TODAY — MANUAL DRAFTING
- DAY 0Estimate approved by the client
- DAY 1–4Package waits in the CAD queue
- DAY 5Drawings arrive — client wants a revision
- DAY 6+Back of the queue. Again.
3–5days per package · engineer tied up
A BUILT-FOR-YOU SERVICE · CASE: BARRIER SYSTEMS
Price it.
It's already drawn.
We build custom quote-to-drawings systems for made-to-order manufacturers. Your sales team types the dimensions — and gets the full production drawing package, priced, in minutes.
3–5 d → 20 min
PER DRAWING PACKAGE
1 engine
PRICE · BOM · SHEETS · 3D
weeks
TO A WORKING SYSTEM
SHEET 1.0 — FRONT ELEVATIONREDRAWS LIVE
BUILT FOR MADE-TO-ORDER MANUFACTURERS —
- BARRIERS
- RAILINGS
- FACADES
- DOORS & WINDOWS
- STAIRS
- GLAZING
- MILLWORK
- SIGNAGE
SHEET 02 · THE PROBLEM
The estimate takes minutes.
The drawings take days.
Every custom order sits in a CAD queue while the deal cools. Every revision goes to the back of it. And the quote quietly drifts away from what gets drawn.
WITH YOUR SYSTEM
- MIN 0Sales types the dimensions
- MIN 15Order built — priced as it grows
- MIN 16Execute — every sheet dimensioned
- MIN 20Package downloaded. Revision? Re-run it.
10–20minutes per order · engineer reviews only
SHEET 03 · 65-SECOND DEMO
Watch the whole flow —
typed to drawn.
OPEN FULL-SCREEN ↗consedge.com/demo — pitch video
What the demo shows: an operator types one opening's width, height and plank count, the engine drops in the center posts and re-prices the order on every change, then exports a fully dimensioned drawing set and a 3D model — six scenes, about 65 seconds.
SHEET 04 · TRY THE ENGINE
Drag the width. Watch it redraw.

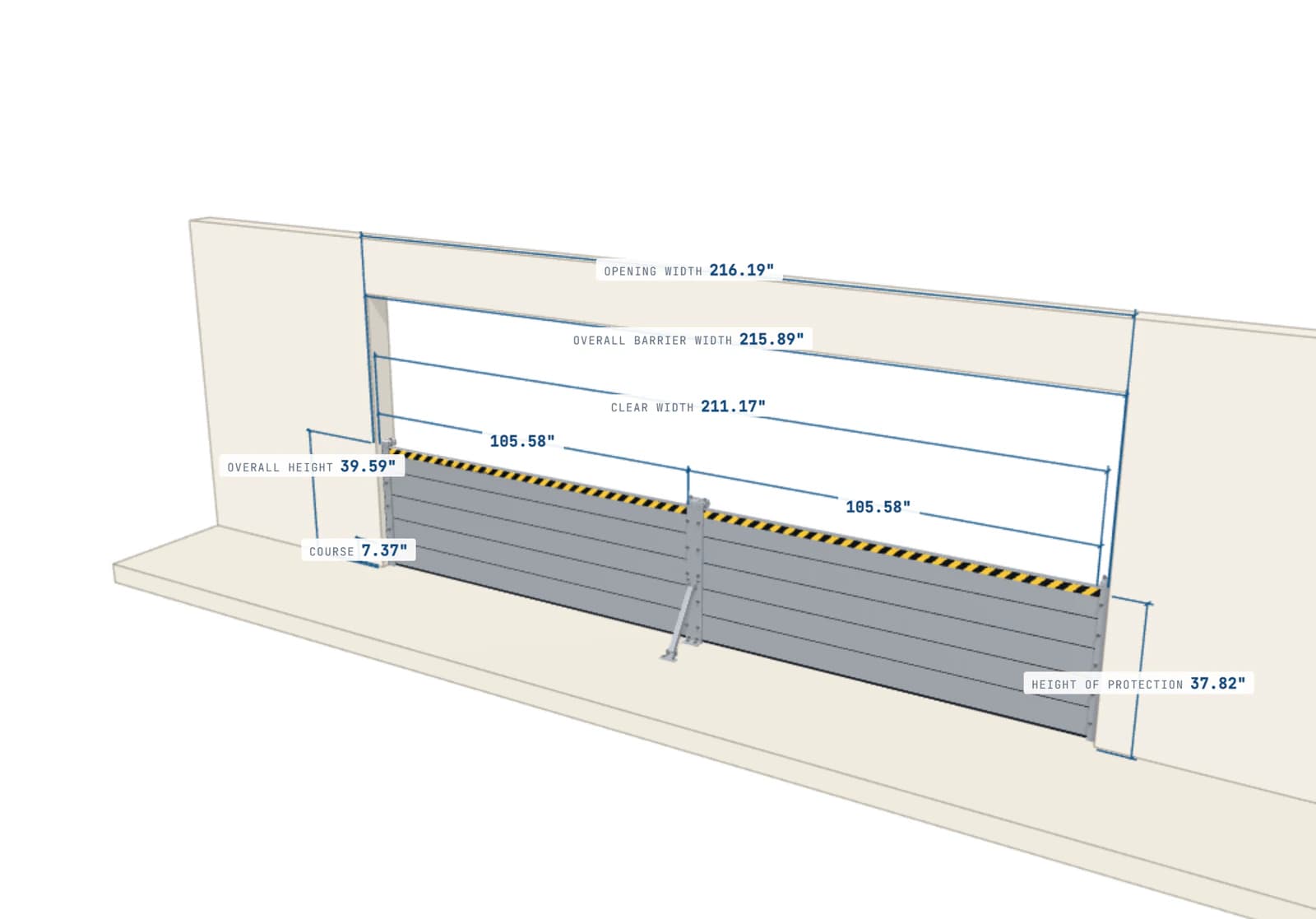

This is the same geometry engine as the working system — center posts appear on their own past 110", and the price follows every move.
216.19"
48"110" — center post threshold300"
CENTER POSTS — 1 (auto)
PROTECTION HEIGHT — 38.25"
PROTECTION HEIGHT — 38.25"
ESTIMATED PRICE — LIVE
$3,826.21
LIST · SINGLE OPENING · TAX EXCL.
SCHEMATIC — FRONT ELEVATIONLIVE
SHEET 05 · THE 3D MODEL
Every item ships as a model
you can spin.
Rebuilt from the same parameters as the sheets — viewable in the browser, exportable for the client.
3D VIEWER — barrier.glb · REVIT EXPORT⟲ DRAG TO ROTATE · WHEEL TO ZOOM
SHEET 06 · HOW IT WORKS
Three steps. No CAD seat.
- 01Enter the openings
Dozens per order. Each one redraws its schematic live and re-prices the whole order instantly.
216.19" - 02Execute the order
One click. The engine dimensions every sheet — top, front, side, sections — and writes the estimate.
- 03Download the package
Production-ready PDF package plus an interactive 3D model of every item — in one delivery.
READYdelivery-package.pdf
DELIVERED AS A SERVICE — THE PATH TO PRODUCTIONFIXED-SCOPE PoC · NDA FIRST
- 0130 MINDiscovery call
Bring two sample packages and your price logic — we map your product to the engine live.
- 021 WEEKRules audit
Your engineering rules formalized with your engineer — spans, hardware, tolerances, sheet templates.
- 032–3 WEEKSProof of concept
One product line end-to-end: calculator → sheets → 3D. Fixed scope, fixed price — you see it working.
- 04ONGOINGProduction + support
Rollout under your domain, next product lines added, rules updated as your catalog evolves.
SHEET 07 · GALLERY
The product — and its paperwork.
Real generated sheets from the Straight Barrier project, renders from the client's Revit model — and room for installation photos.

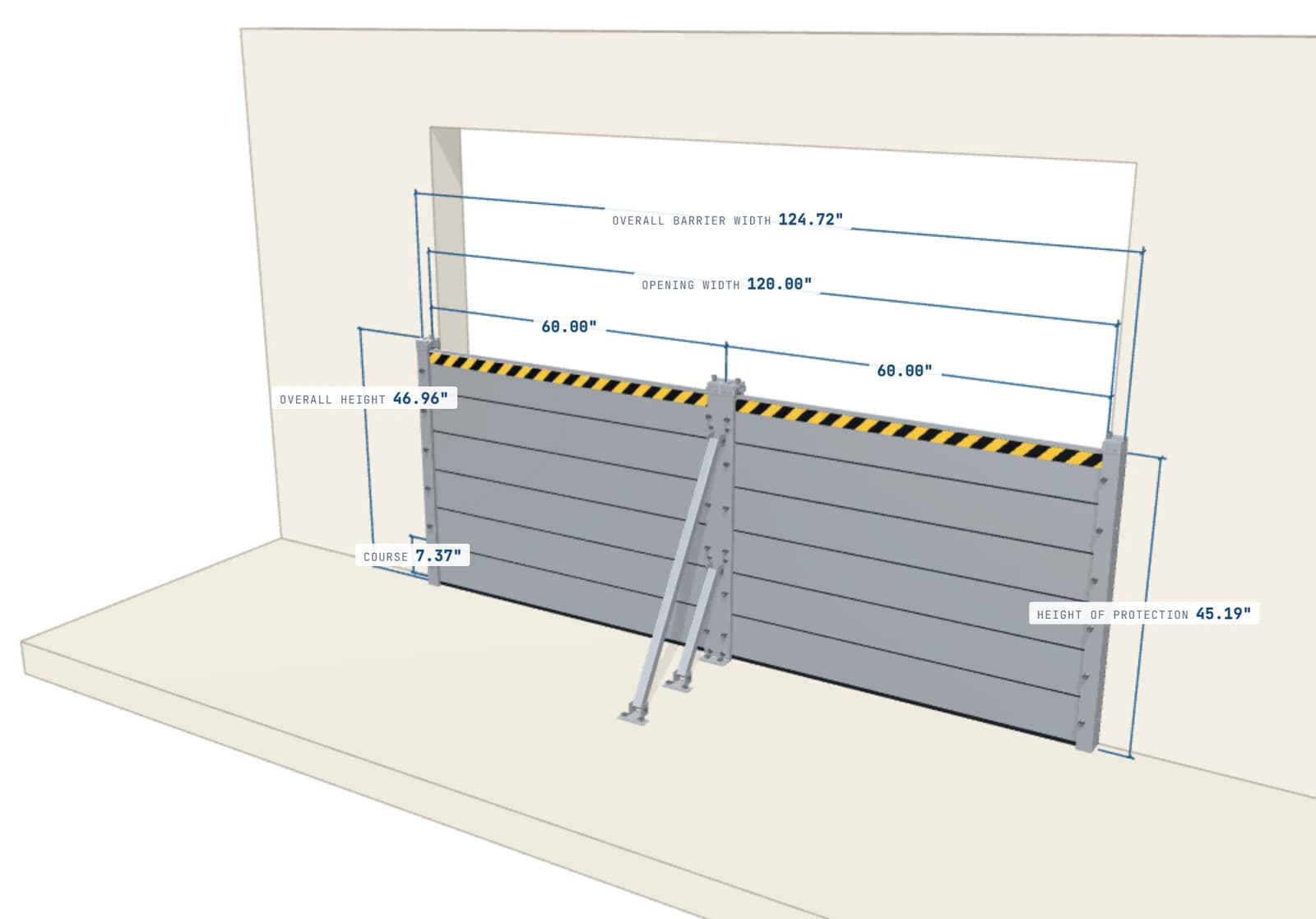

INSTALLATION VIEW — 3D RENDER · NOT A PHOTO
SHOP FLOOR VIEW — 3D RENDER · NOT A PHOTO
SHEET 08 · WHAT YOU GET
One click. Six sheets and a 3D model.
DELIVERY PACKAGEREADY FOR PRODUCTION
- D1 · D2 — post & hardware details
- 1.0–3.0 — one dimensioned sheet per opening
- EST — estimate + bill of materials
- GLB — interactive 3D model of every item
PRIVATE DEPLOYMENT
Runs under your domain, for your team only. Not a shared platform.
YOUR RULES = YOUR IP
Engineering logic is formalized with your engineer and stays your property.
STAMP STAYS YOURS
We generate shop drawings from approved rules; review and sign-off stay with your engineer.
NDA FIRST
Drawings, price logic and BOMs are shared under NDA from the first call.
SHEET 09 · WHY CUSTOM
Off-the-shelf configures.
Custom draws.
CPQ tools and product configurators stop at a quote and an options list. Production needs dimensioned sheets — and those only come from your engineering rules.
| Compared on | READY-MADE CPQ / CONFIGURATOR | consedge.BUILT FOR YOU |
|---|---|---|
| Engineering rules | No — Generic option lists — your spans, tolerances and hardware don't fit the template | Yes — Your formulas encoded with your engineer — center posts, braces, seals appear by rule |
| What comes out | No — A price and a BOM list — drawings still go to the CAD queue | Yes — Dimensioned production sheets + estimate + 3D model, in one click |
| Revisions | No — Change the quote, then redraw in CAD anyway — two sources of truth | Yes — Re-run the order — price, BOM and sheets update together, in seconds |
| Fit to your process | No — You adapt your workflow to the tool — and pay for modules you don't use | Yes — The tool is shaped to your order flow, sheet templates and title blocks |
| Ownership & cost | No — Per-seat subscription forever; your data on someone else's platform | Yes — One build + support; private deployment — the rules stay your IP |
IF A READY-MADE CONFIGURATOR ALREADY DRAWS YOUR PRODUCT — USE IT. IF IT DOESN'T, THAT'S WHY WE EXIST.
SHEET 10 · WHAT IT'S WORTH
Count your queue.
Two numbers from your last quarter are enough to see what the queue really costs — and what same-day packages change.
1,920estimated days of waiting removed per year
YOUR FIGURES × 12 MONTHS · AN ESTIMATE, NOT A MEASURED RESULT
SHEET 11 · WHAT IT COSTS
Three steps. You can stop after any of them.
Nobody should hand a fortnight of their engineer to a supplier they met online. So the first step costs you a file, the second costs a fixed fee and a few hours, and only the third is a project.
- STEP 01
Teardown
Free
ONE PACKAGE · NO CALL
Send one finished drawing package you already own. You get back a written verdict naming which of your sheets a rules engine could generate — and which it could not, with the reason for each.
NO MEETING · WE ARE TWO ENGINEERS, NOT A SERVICE DESK
- STEP 02
Pilot sheet
$4,000
FIXED · FIVE WORKING DAYS
We sit with your engineer for a few hours, encode your rules, then draw three of your own past jobs and set the output beside the sheets your shop actually produced. Including the differences.
YOU KEEP THE RULES IN WRITING EITHER WAY · FEE COMES OFF THE BUILD IN FULL
- STEP 03
The build
from $15,000
QUOTED AFTER THE PILOT
One product line, end to end. Quoted once the rules are known — never before, because a number quoted before the rules are read is a guess dressed as a price.
SOURCE CODE IS YOURS · NO PER-SEAT LICENCE · NO SUBSCRIPTION
ONE-OFF BUILD · OPTIONAL SUPPORTNO COMMISSION ON YOUR QUOTESPRIVATE DEPLOYMENT UNDER YOUR DOMAINNDA FIRST
If a package already exists for your exact product, buy it.
For stairs: Staircon. For cabinets and casework: Cabinet Vision. For gates, fences and balustrades: CAD60. Any of these will be cheaper than anything we build, and it has been debugged by thousands of shops we will never meet. We exist for the products nobody wrote a package for — which, for made-to-order work, is most of them.
And if your budget for this is under $15,000, a ready-made configurator is a better use of it than a call with us.
PRICES LAST REVIEWED JULY 2026 · REVIEWED QUARTERLY
SHEET 12 · FAQ
Before you ask.
How long until we have a working system?
A discovery call, a one-week rules audit with your engineer, then a proof-of-concept for one product line in 2–3 weeks. Production rollout and support follow once the PoC earns it.
Does it replace our CAD team?
No — it removes the routine packages from their queue. CAD stays for genuinely custom work; the engineer reviews edge cases instead of drafting the same sheets again.
What do you need from us to start?
Two sample drawing packages and your price logic (a spreadsheet is fine). That's enough to map your product to the engine on the first call.
Our product is more complex than a barrier.

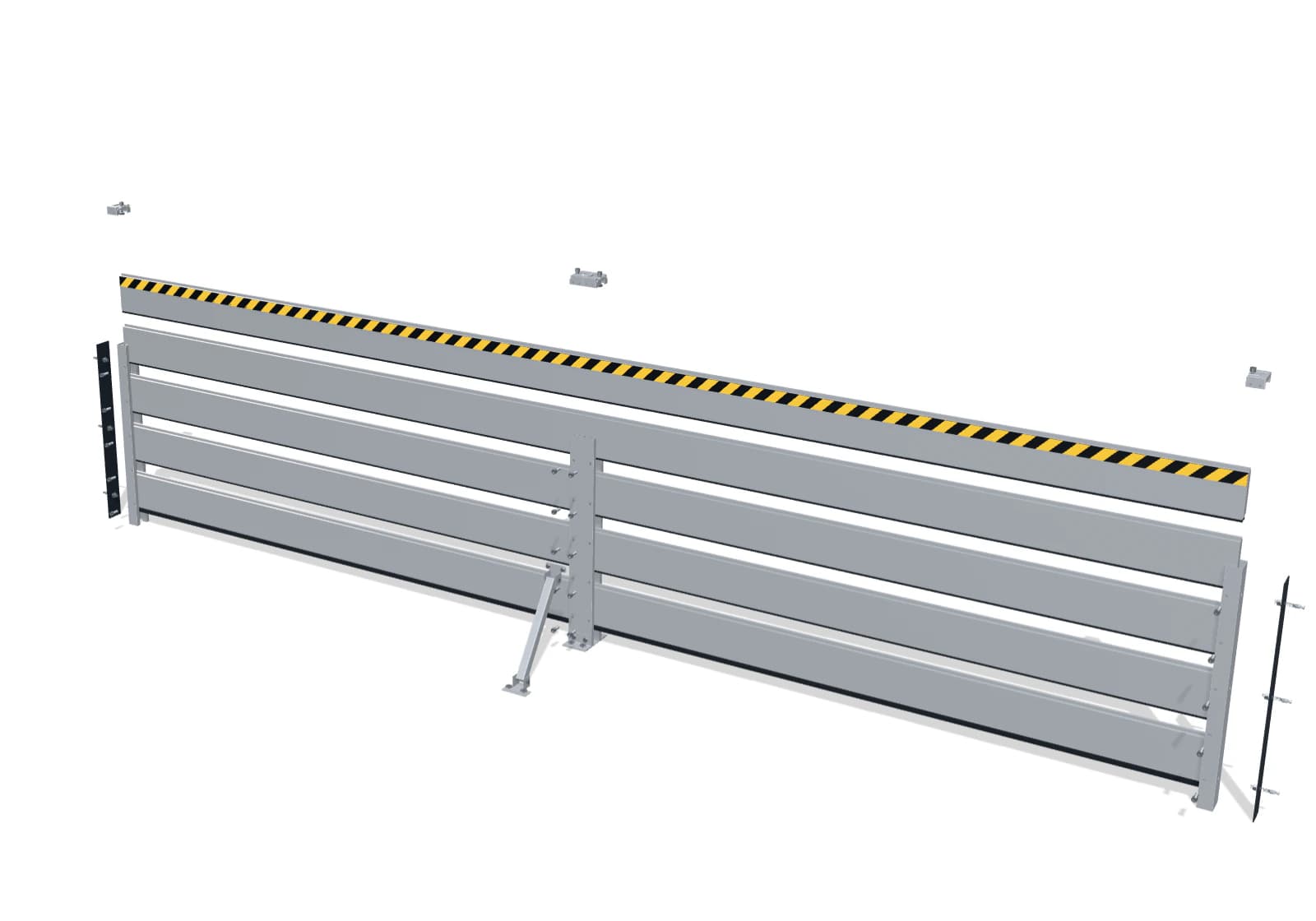

Good — that's where the queue hurts most. We start with your most parametric line, prove it end-to-end, and expand line by line. The barrier case shipped with auto center-posts, braces and mounting variants baked in.
